WON Linear Motion System

Click Image to view details
Linear Guide

Linear Guide
WONST has provided many different kinds of linear motion guides from subminiature series to the most general ball linear motion guide, low noise linear motion guide, and ultra-high rigidity roller linear motion guide. As they have various forms and sizes for each user environment, you can choose the optimum linear motion guide for your specific purpose.

Visit Our WON ST Page >>

Click Image to view details
Crossed Roller Bearing

Crossed Roller Bearing
- A separable outer ring and rotary inner ring type.
- It can be used for cases which need running accuracy of an inner ring.
- An integrated type of an inner ring and an outer ring.
- A customization type.

Visit Our WON ST Page >>

Click Image to view details
Ball Spline

Ball Spline
Linear ball spline:
- A structure where balls in four ball rows touch circular arch groove of a nut and a shaft by two points.
- As a circle flange type, it can be installed in a simple way.
Compact ball spline:
- A structure where balls in two ball rows touch Gothic arch groove of a nut and a shaft by four points.
- As a circle flange type, it can be installed in an easy way.

Visit Our WON ST Page >>

Click Image to view details
Crossed Roller Guide Way

Crossed Roller Guide Way
Guide: A compact high rigidity linear guide by which a roller cage rolls on the 90° V groove of a rail.
Table: A high accuracy and high rigidity linear motion unit on which a cross roller guide is assembled on a precisely processed table and base.
Roller cage: Precise rollers are arranged orthogonally and combined on a rolling surface of 90° V groove of a dedicated rail.

Visit Our WON ST Page >>

Click Image to view details
Super Linear Bushing

Super Linear Bushing
Bushing:
- Automatic self-aligning super ball bushing for high load.
- Load capacity, three times as large as general linear bushing. (27 times longer life span)
Block:
- Aluminum block in which super linear bushing is assembled.
- As a dedicated block for ball bushing, it has one or two assembled ball bushings. There is also a clearance adjustable block.

Visit Our WON ST Page >>

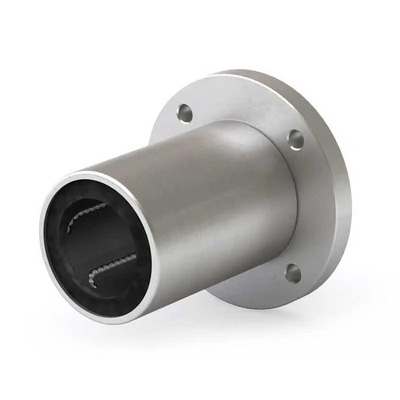

Click Image to view details
Linear Bushing

Linear Bushing
WON ST Linear Ball Bushing, LM type, is the linear motion system with unlimited stroke by being applied with LM shaft. Because of the point contact between Balls and LM shaft, the minimum friction can be acquired and can provide you the high-precision motion.

Visit Our WON ST Page >>

Click Image to view details
Linear Motion Shaft

Linear Motion Shaft
WON ST Linear Motion Shaft (LM Shaft) is hardened and ground shaft featuring high precision for rectilinear motion which can be used in conjunction with Ball Bushing. LM Shaft used in conjunction with ball bushing has a role as the guide of the ball bushing and the inner raceway of the bearing as well. The quality of shaft has a great influence on the functions of ball bushing and linear motion system.

Visit Our WON ST Page >>

Click Image to view details

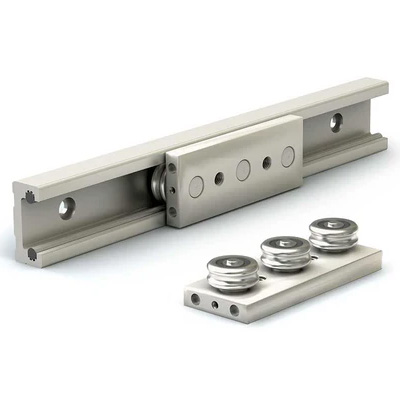

Track Roller Guide

Track Roller Guide
WON ST Track Roller Guide has been developed by WON R&D Center based on knowledge and experience for several years in the field of Linear Motion System. It consists of the guide rail inserted by applying pressure onto a precisely grinded and heat treated shaft and a roller unit.

Visit Our WON ST Page >>

ABOUT WON LINEAR MOTION SYSTEM:

WON ST provides a full portfolio of linear motion bearings including a variety of Linear Guides including Ball Linear Guides for a general use of linear motion, Mini Linear Guides for a compact environment of linear motion, and Roller Linear Guides for ultra-high load, high rigidity and high precision, a variety of Linear Bushings and Super Linear Bushings, various Cross Roller Bearings, Linear Actuators, Smart Actuators, Shafts and other linear motion parts.
